U-bo
Outdoor Air Conditioner Stand ＜Sep. 1, 2025 New Release＞
Non-Visible Option

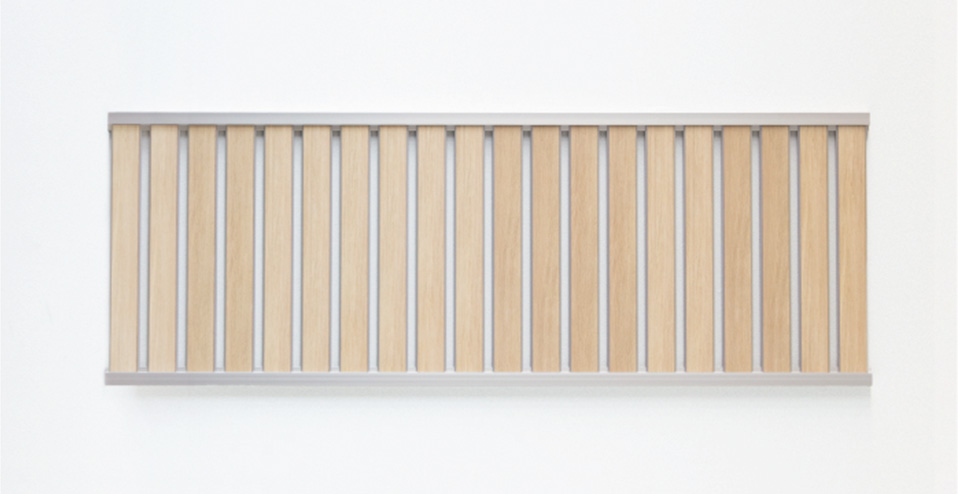

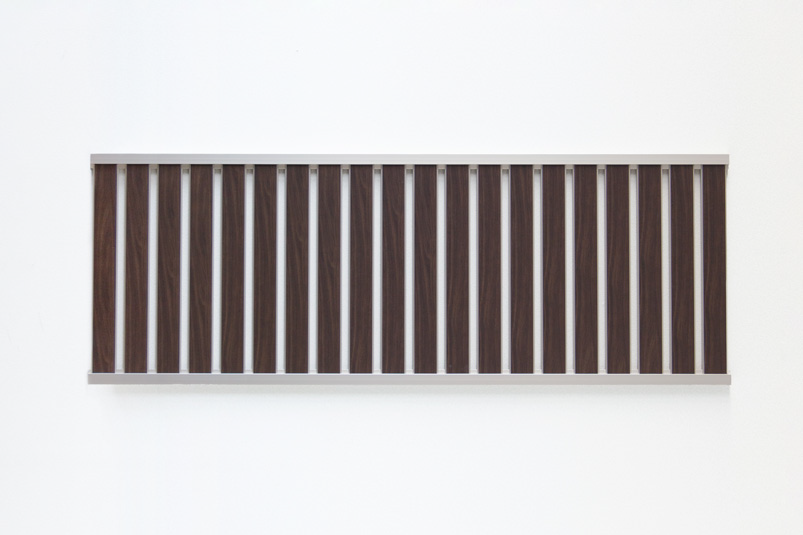

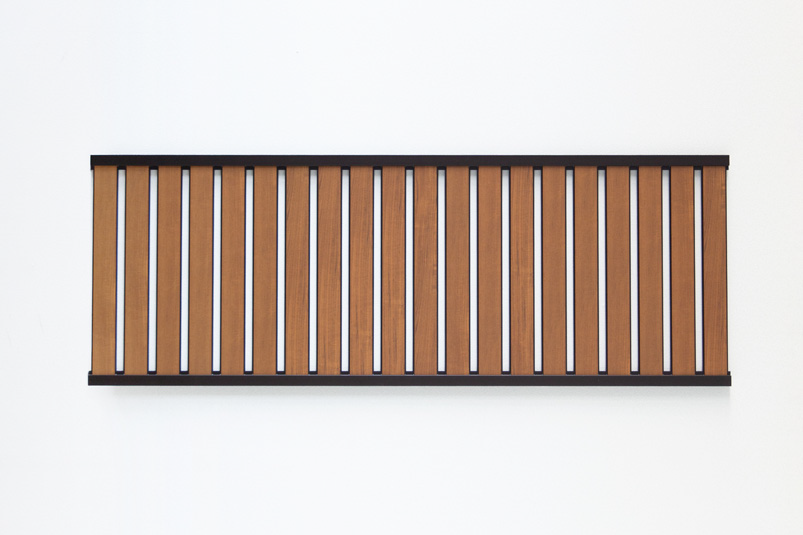

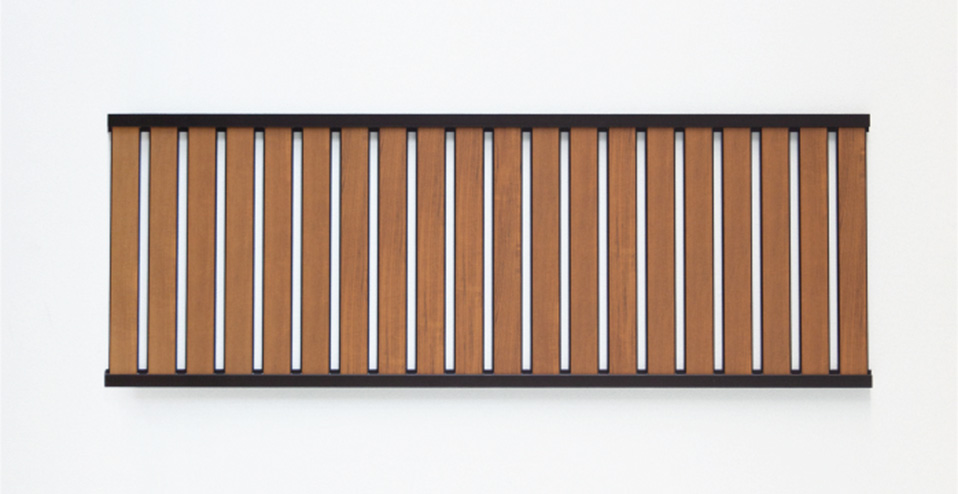

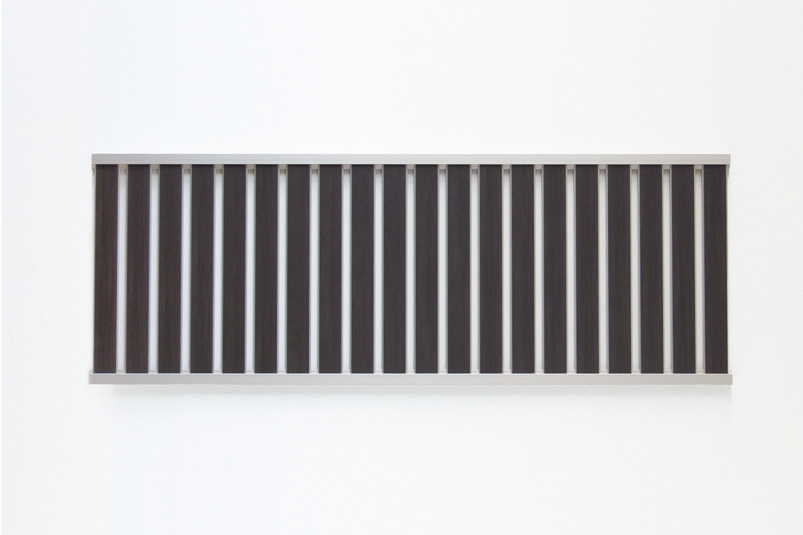

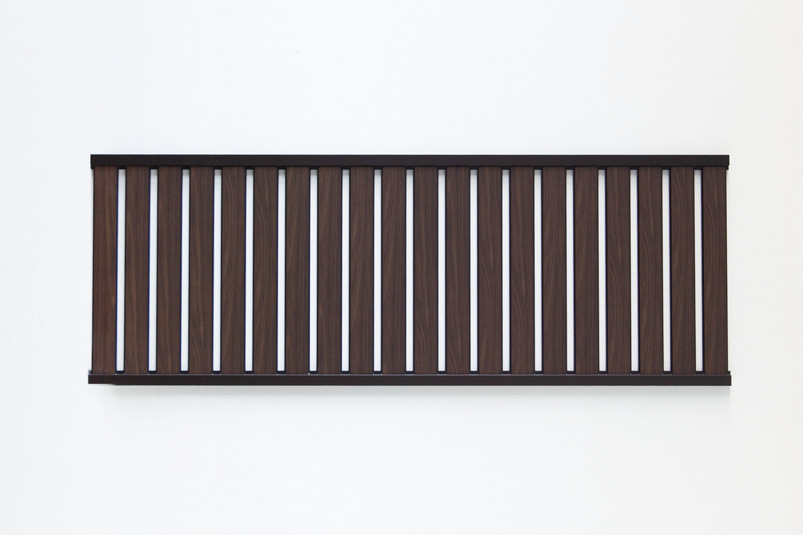

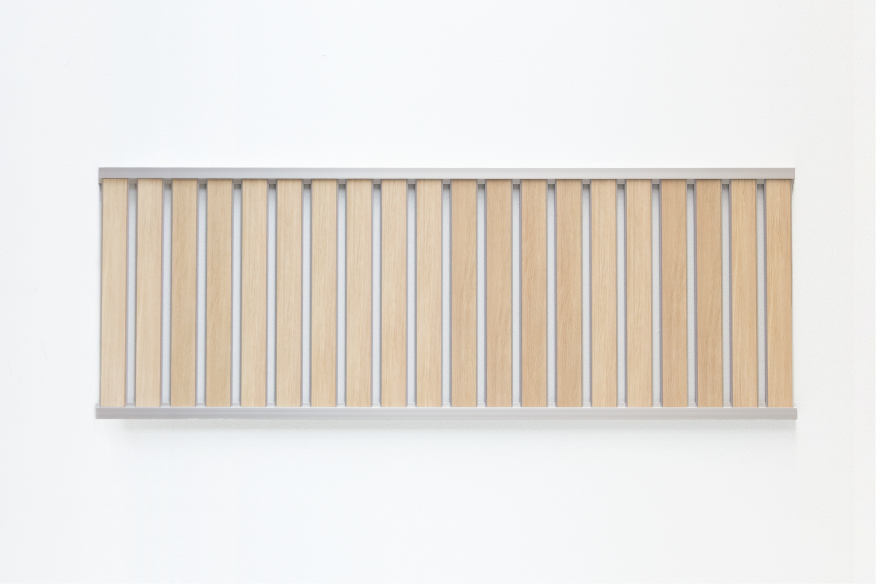

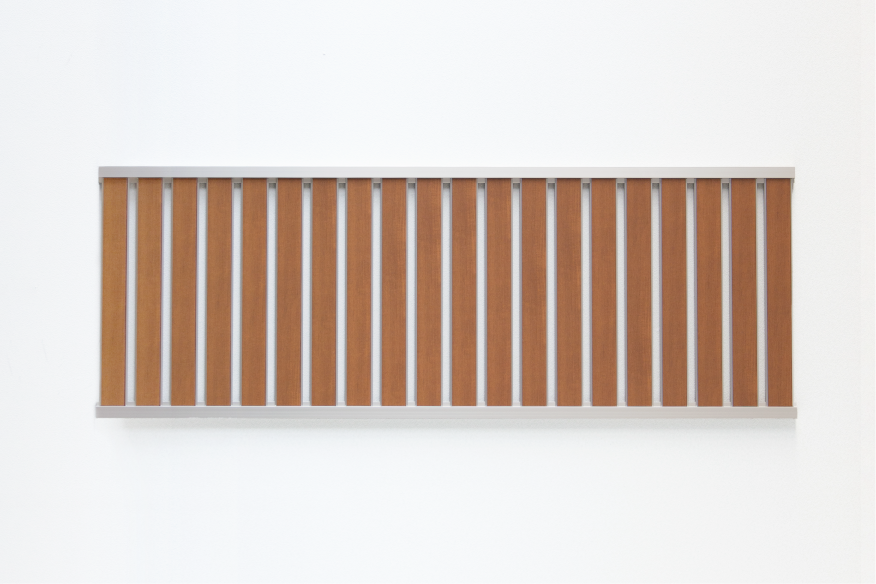

A wall-mounted cover that gently conceals the outdoor unit. The wood-grain vertical slats harmonize with the exterior, softening its otherwise industrial appearance.
Features

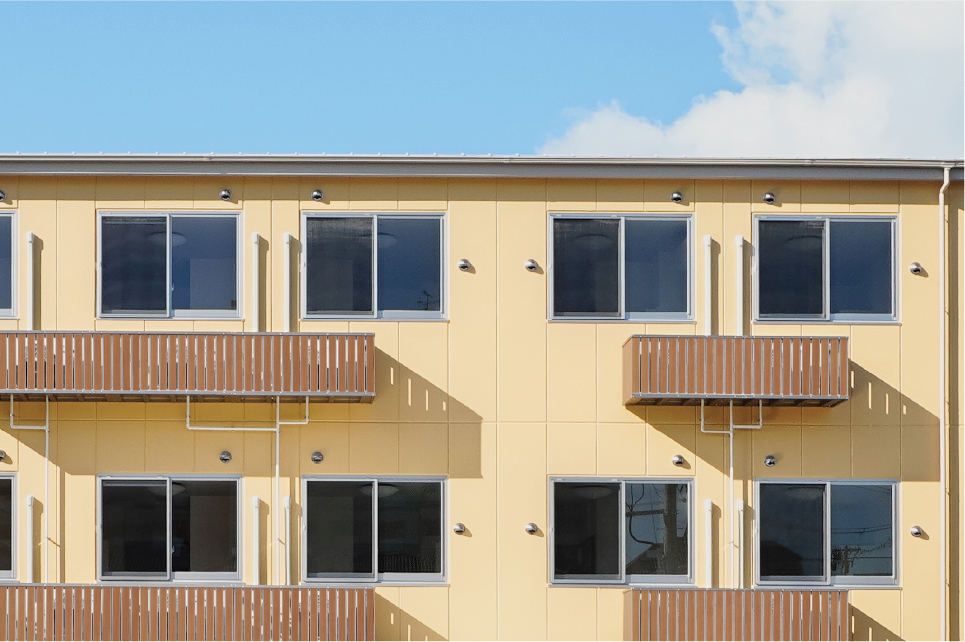

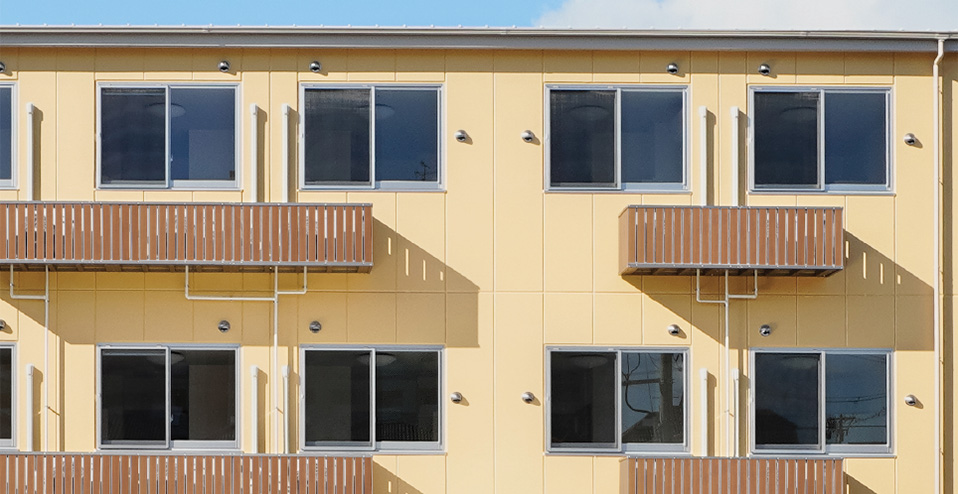

U-bo is a wall-mounted stand for outdoor units. By combining it with wood-grain vertical slats to cover the unit, it transforms the building’s appearance from an industrial look to a softer, more inviting image. In addition, multiple units can be connected to extend the width up to 6 meters, making it ideal for buildings with many rooms, such as apartment complexes.

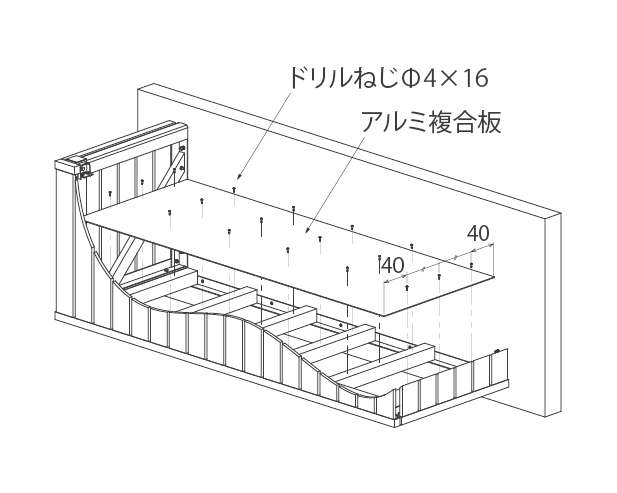

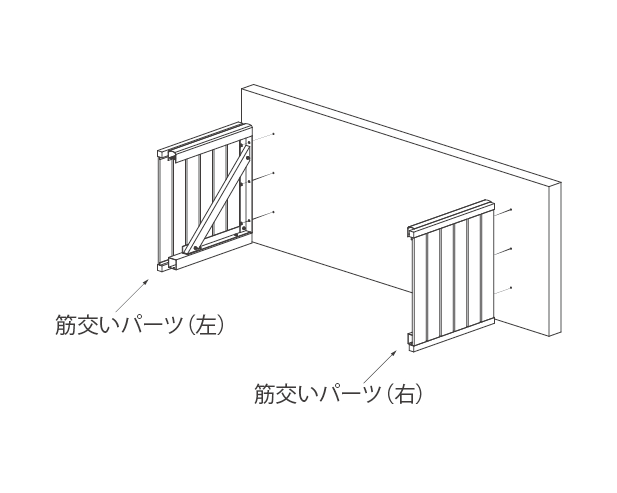

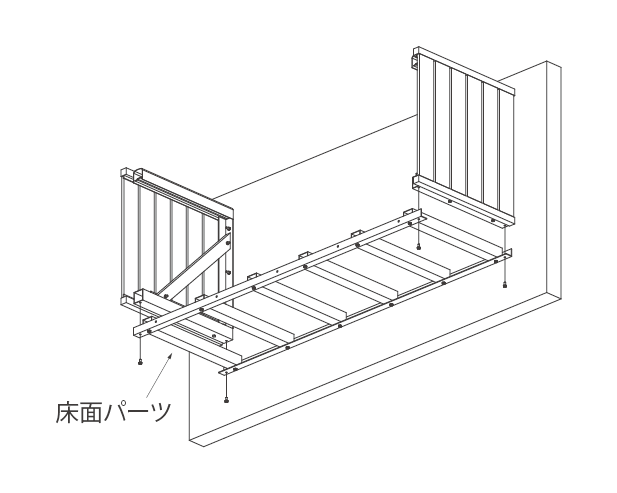

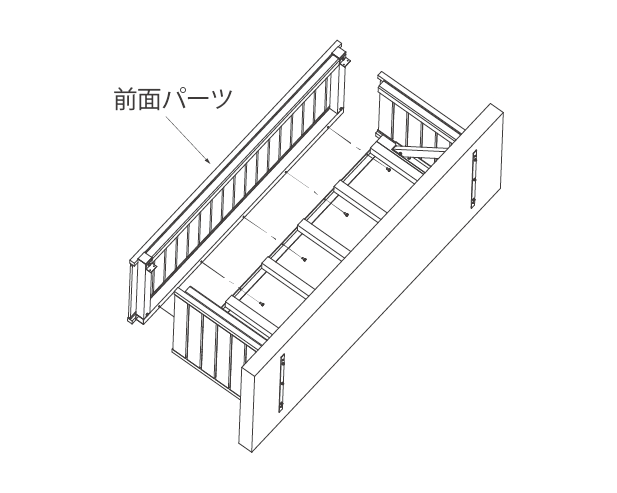

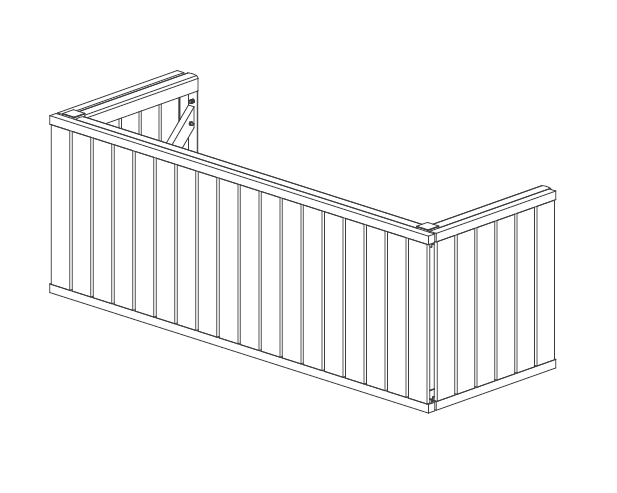

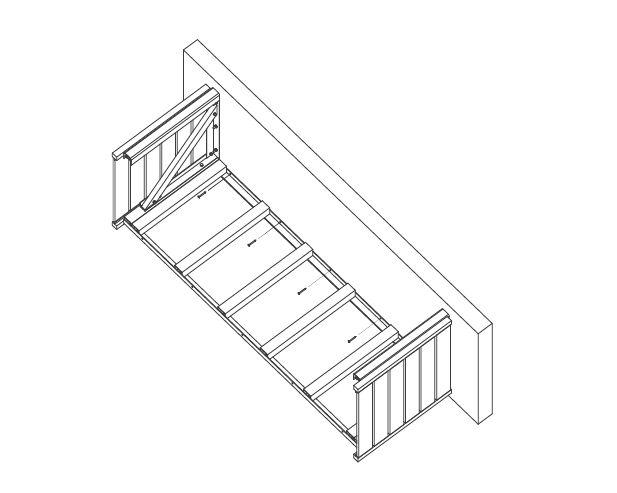

Installation Instructions

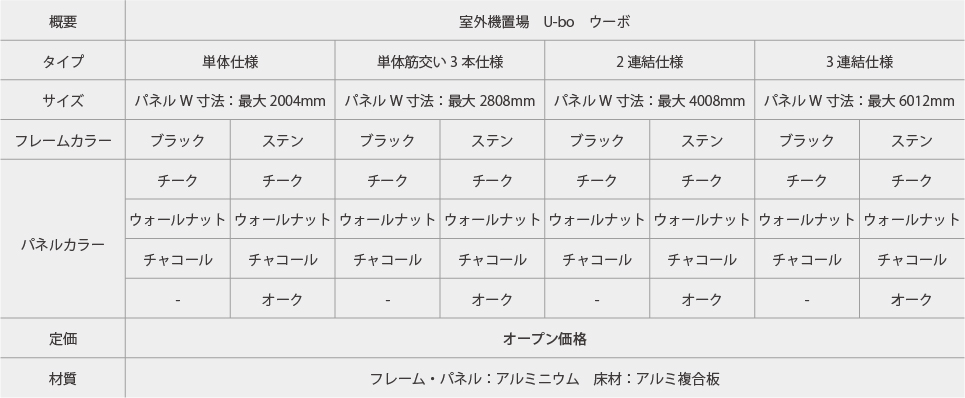

Specifications
Structural Test
■Test Details
JIS A6601 Uniformly Distributed Vertical Load Test on Balcony Components and Handrail Components/Flooring for Low-Rise Residential Buildings
■Test Methods
A two-unit outdoor air conditioner stand (W2000 × D690) is installed on a 100 mm-thick ALC panel. Sandbags weighing 5 kg each are placed on the floor material to apply a uniformly distributed load. Deflection is measured using a deflection gauge. In addition, all joints are visually inspected for any looseness or detachment.
- Under the performance specification load of 900 N, the maximum deflection of the beam was 0.97 mm, which is below the allowable limit of 4.00 mm. No looseness or detachment was observed at any of the joints.
- Under a load of 1800 N/m², no abnormalities were observed in the product.
- Load capacity 90 kgf × Safety factor 3 = 270 kgf. After 24 hours of application, no abnormalities were observed in the product.
